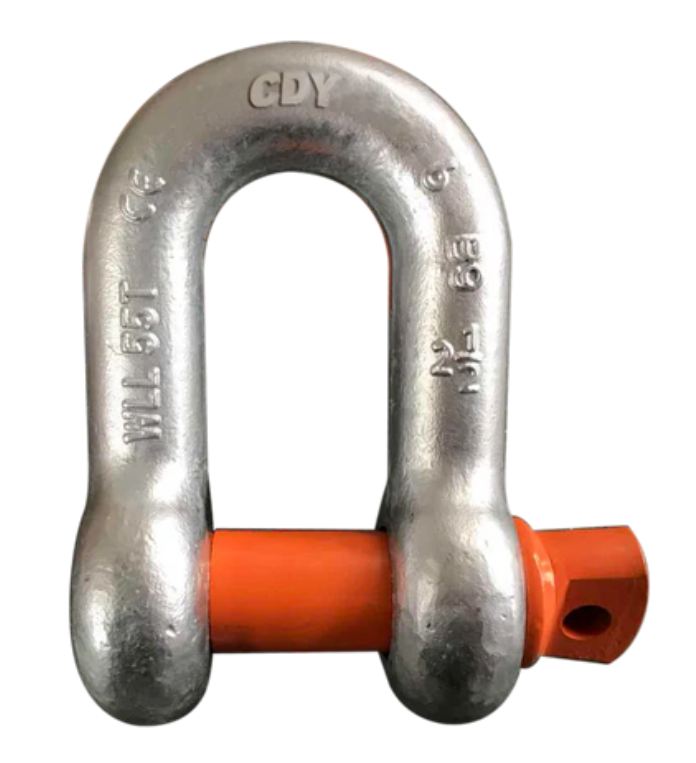

RIGGING CHAIN SHACKLES G-210

• G-210 Screw pin chain shackles

 • Meets the performance requirements of Federal Specification RR-C-271F

  Type IVB, Grade A, Class 2

 • Maximum Proof Load is 2.2 times the Working Load Limit,

  with a minimum break force 6 times the working load limit.

• Capacities 1/2 thru 55 metric tons.

• Forged - Quenched and Tempered, with alloy pins.

• Working Load Limit and grade “6” permanently shown on every shackle.

• Hot Dip galvanized or self colored.

• Fatigue rated.

• Shackles can be furnished proof tested with certificates to designated standards

  Charges for proof testing and certification available when requested at the time of order.

• Shackles can meet impact requirements of 42 joules(31 ft-lbs) avg, at -20 degrees C (-4 degrees F).
