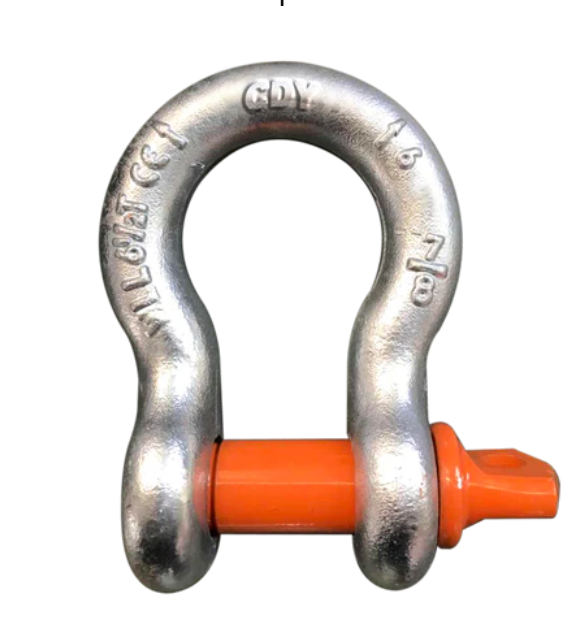

• Screw pin anchor shackles
• Meets the performance requirements of Federal Specification RR- C-271F Type IVA, Grade A, Class 2
•Maximum Proof Load is 2.2 times the Working Load Limit,
with a minimum break force 6 times the working load limit.
• Capacities 1/3 thru 55 metric tons.
• Forged - Quenched and Tempered, with alloy pins.
• Working Load Limit and grade “6” permanently shown on every shackle.
• Hot Dip galvanized or self colored.
• Fatigue rated.
• Shackles can be furnished proof tested with certificates to designated standards
• Charges for proof testing and certification available when requested at the time of order.
• Shackles can meet impact requirements of 42 joules(31 ft-lbs) avg. at -20 degrees C (-4 degrees F).
Share
Materials
Materials

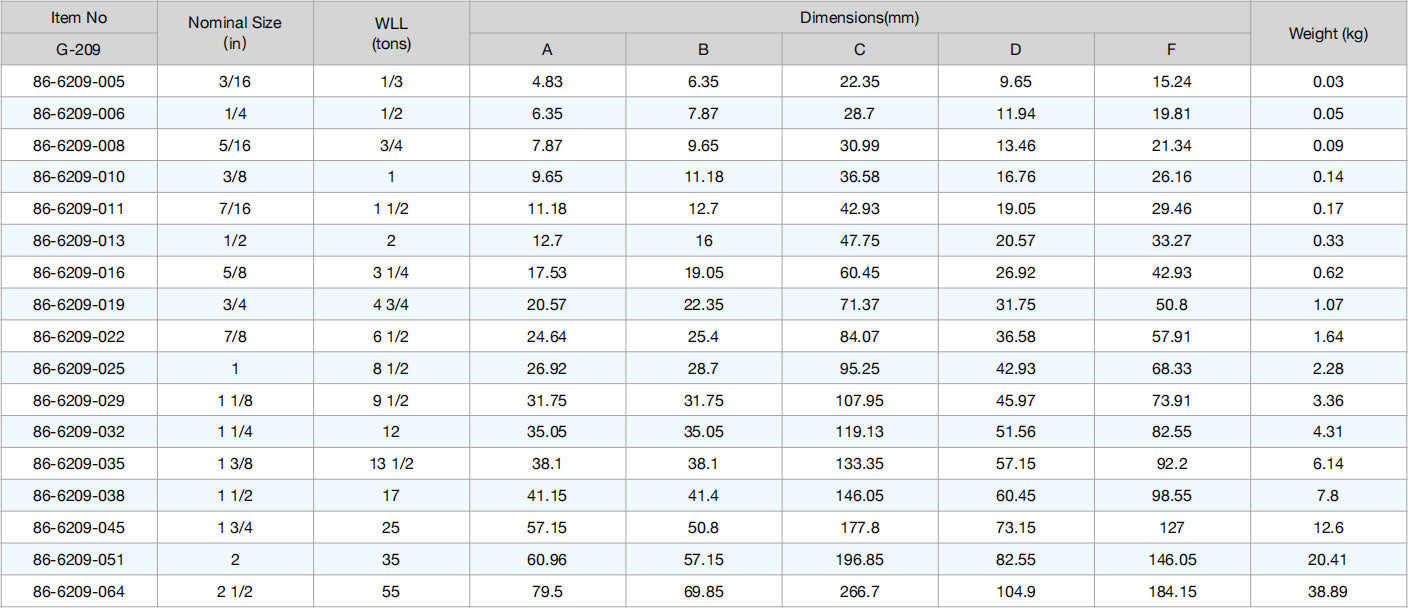

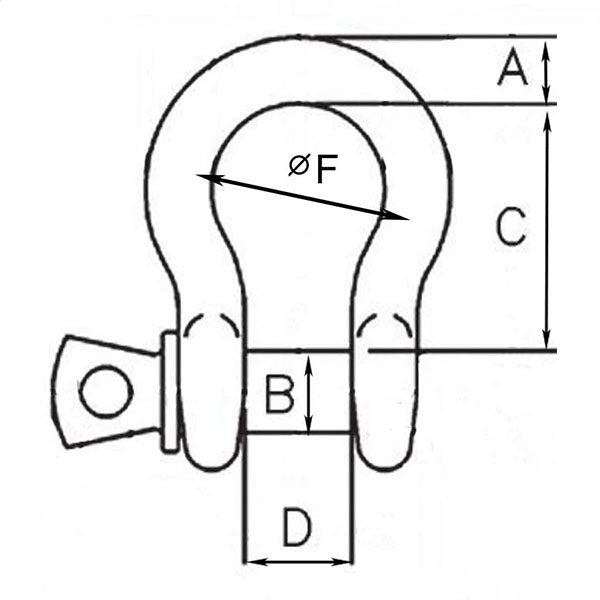

Dimensions
