ANCHOR SHACKLES LIFTING PRODUCTS RIGGING G-209

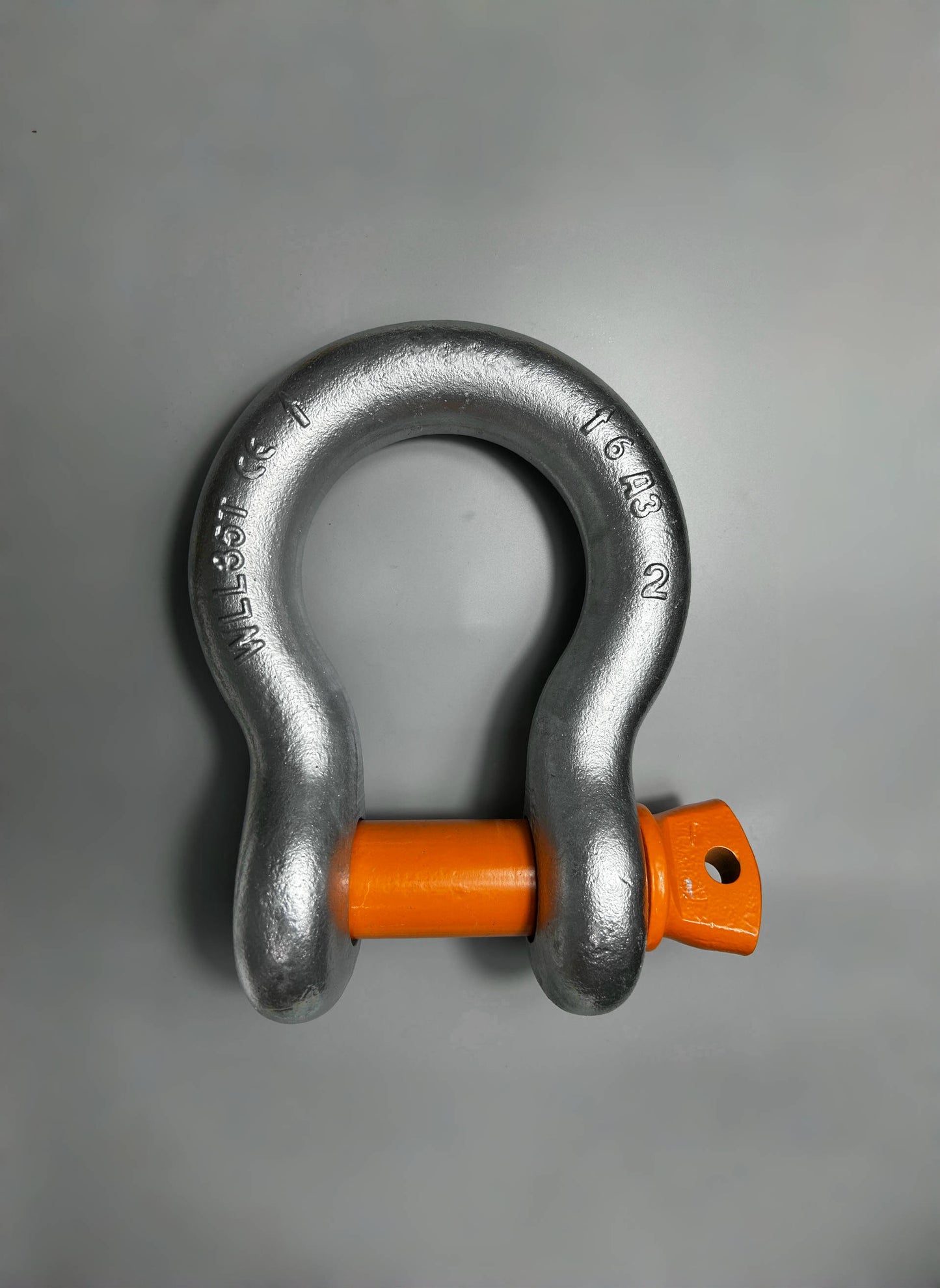

• G-209 Screw pin anchor shackles

 • Meets the performance requirements of Federal Specification RR-  C-271F Type IVA, Grade A, Class 2

•Maximum Proof Load is 2.2 times the Working Load Limit,

  with a minimum break force 6 times the working load limit.

• Capacities 1/3 thru 55 metric tons.

• Forged - Quenched and Tempered, with alloy pins.

• Working Load Limit and grade “6” permanently shown on every shackle.

• Hot Dip galvanized or self colored.

• Fatigue rated.

• Shackles can be furnished proof tested with certificates to   designated standards

• Charges for proof testing and certification available when requested at the time of order.

• Shackles can meet impact requirements of 42 joules(31 ft-lbs) avg. at -20 degrees C (-4 degrees F).
